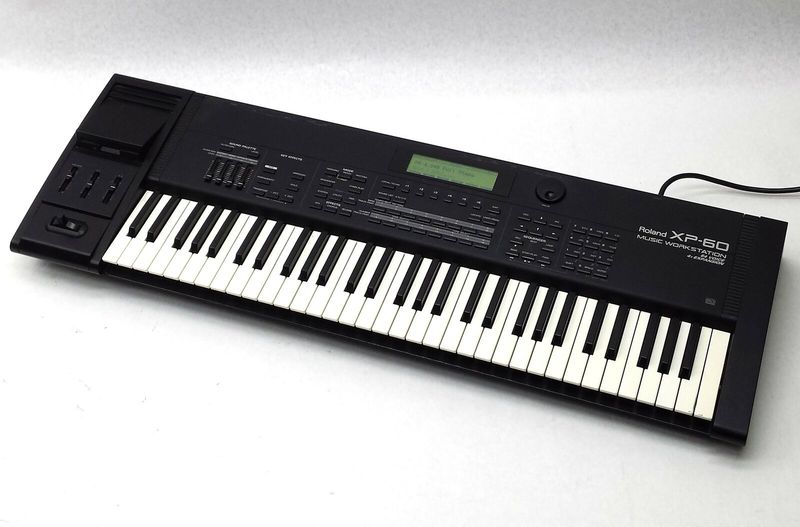

Roland XP-60 Synthesizer / Workstation - BRUKT

The XP-60 Music Workstation is a popular member of Roland's widely acclaimed XP-Series of advanced music workstations. It offers renowned sound quality, expandability, an enhanced display and upgraded professional sequencing features at a new level of affordability.

• Weighted 61-note music workstation with 64-voice polyphony, 16-part multitimbral capability, velocity/aftertouch sensitivity, GM-compatibility
• 8MB* of high-quality Roland waveforms onboard, expandable to 40MB* using any four of Roland's popular SR-JV80-Series wave expansion boards
• Enhanced 60,000 note MRC Pro Sequencer with refined Groove Quantize, non-stop Loop Recording and Tempo Sync (BPM)
• Advanced Arpeggiator with 33 different styles, velocity-sensitive Realtime Phrase Sequencer (RPS)
• Three powerful, independent built-in effects processors: Chorus, Reverb and EFX (w/ 40 available insert effects)
• Large new 320 x 80 full-dot backlit LCD with acclaimed user interface borrowed from XP-80
• Four Sound Palette sliders for quick, intuitive sound shaping, many dedicated buttons for easy operation
• Four Assignable pedal inputs, Direct and Mix output jacks, Click output
• New MMC compatibility for synchronization with Roland V-Studios, etc.
• Note that this product is no longer in production. Similar capabilities can be found in the Fantom workstation.

Architecture

• Type: Digital
• Synthesis: ROM

Oscillators

• Oscillators: 4
• Waveforms: ROM
• Osc Modulation: Continuous Controller, Envelope, Keyboard, LFO, Mod Wheel, Oscillator, Pedal, Pitch Wheel
• Evelope Paramerters: Attack, Decay, Sustain, Release, Looping

Filters

• Filters: 2
• Types: 24dB Slope (4-pole), High Pass, Low Pass, Resonance

LFO

• LFO: 2
• LFO Parameters: Sample & Hold, Saw Up, Saw Down, Square, Triangle, Clocked, Delay, Freerun, Key Sync

Polyphony & Tuning

• Polyphony: 64
• Timbrality: 16
• Tuning: Standard
• Modes: Mono, Polyphonic, Split

Patches

• Patches RAM: 128
• Patches ROM: 32
• Multipatches RAM: 512
• Multipatches ROM: 64
• Storage: Internal, RAM Cartridge, ROM Cartridge
• Editing: MIDI

Arpeggiator

• Advanced Arpeggiator with 33 different styles, velocity-sensitive Realtime Phrase Sequencer (RPS)

Sequencer

• Tracks
• Phrase Tracks (16 MIDI channels per track): 16
• Pattern Tracks (16 MIDI channels per track): 1
• Tempo Tracks: 1
• Beat Tracks: 1
• 100 patterns, Songs: 1
• Note Capacity: approx. 60,000 notes
• Song Length: 9,998 measures
• 3.5 Inch Floppy Disk (2DD/2HD)

Case

• Case: Keyboard
• Keyboard: 61 keys, Plastic
• Controls: Aftertouch, Breath, Faders, Pitch - Lever, Velocity - Release , Pedal - Sustain, Tempo Knob, Velocity, Pedal - Volume
• Display Type: LCD, Backlit
• Display Count H: 320
• Display Count V: 80
• Dimensions (WxDxH): 1,028 x 349 x 107
• Weight: 23 lbs 10 oz

Connections

• Audio Output Connections: 1/4" Phone Jack, Stereo Main, Stereo 2, Stereo Headphone
• Audio Output Count: 5
• MIDI Ports: IN, OUT, THRU
• General MIDI: GM - General MIDI
