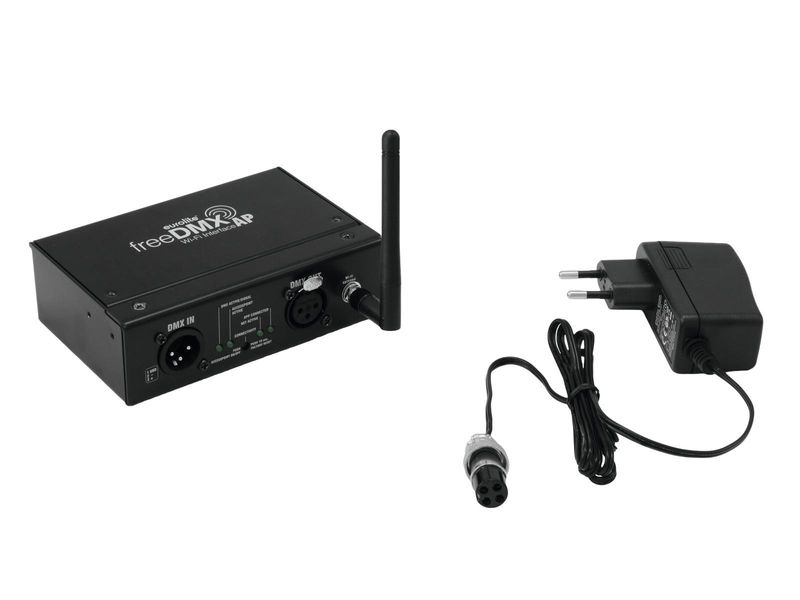

- WLAN DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iPad and Android tablets

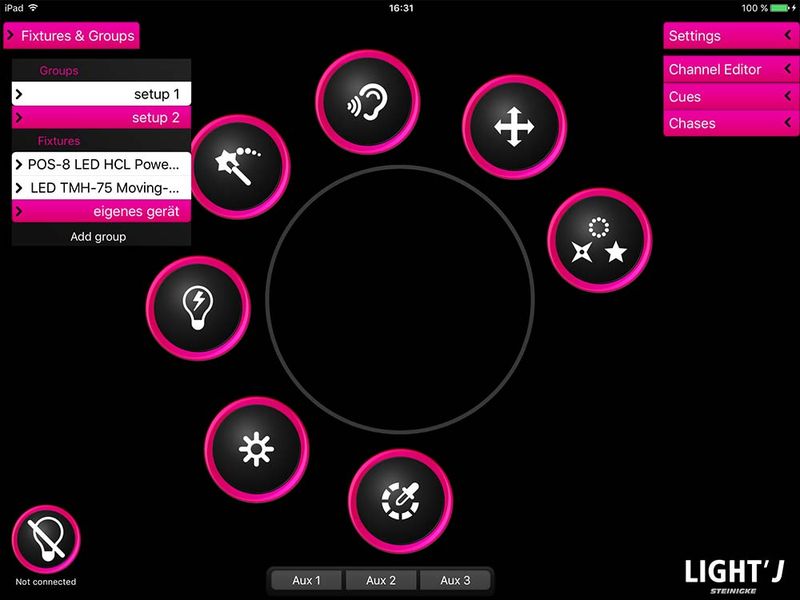

- Control your DMX fixtures more flexible than ever with the Steinigke Light'J app
- Light'J now also supports DMX fixtures of all manufacturers
- The app's online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- Light'J is available for free from the play store and app store and is optimized for tablets from 7"
- Configuration via integrated webserver
- Access point and infrastructure mode
- WLAN standard IEEE802.11b/g/n

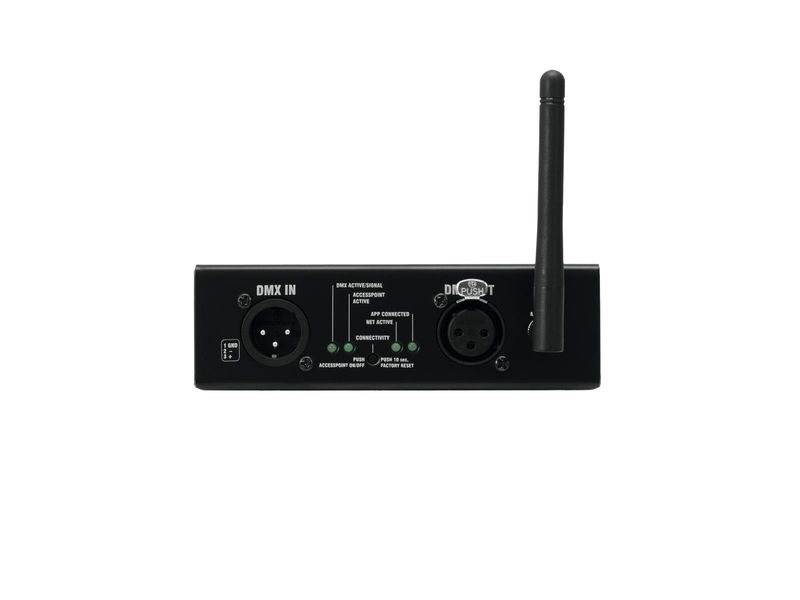

- 3-pin XLR connectors for DMX IN/DMX OUT (Neutrik)
- DMX feed-through capability
- Status LEDs
- Powered via included PSU
- Works with FreeStyler
- Rack mounting kit available as an option (item 70064872)
- Made in Germany
- Control: DMX
- Control: App
- Controller useable for: RGB
- Controller useable for: RGBA
- Controller useable for: RGBW
- Controller useable for: RGBA+RGBW
- Controller useable for: RGBWA
- Controller useable for: RGBWA+UV
- Controller useable for: RGB+WA
- Controller useable for: CW/WW
- Controller useable for: W/A
- Controller useable for: RGBW+UV
- Controller useable for: CW
- Controller useable for: WW
- Controller useable for: RGB+UV
- Controller useable for: UV
- Controller useable for: Colour wheel
- Controller useable for: Controls DMX-effects
- Controller useable for: Controls Moving Lights
- Controller useable for: Controls KLS classic
- Controller useable for: Controls KLS in general
Produsent
Eurolite
Spesifikasjoner
| Power supply: | 12 V DC, 1000 mA |
| via included PSU | |
| Wi-Fi standard: | IEEE 802.11b/g/n |
| Frequency range: | 2.4 GHz range, 11 channels |
| Coverage: | 30 m (in buildings), 60 m (in the open air) |
| Antenna: | 2 dBi |
| DMX512 output: | 1 universe (512 channels) |
| DMX connectors: | 3-pin XLR mounting socket, |
| 3-pin XLR mounting plug, Neutrik | |
| Dimensions (w/o antenna): | L 115 x W 130 x H 41 mm |
| Weight: | 0.65 kg |
| IP classification: | IP20 |
| DMX control channels: | 512 |
| Color: | Black |
| Height: | 4,1 cm |
| Depths: | 11,5 cm |
| Width: | 13 cm |
