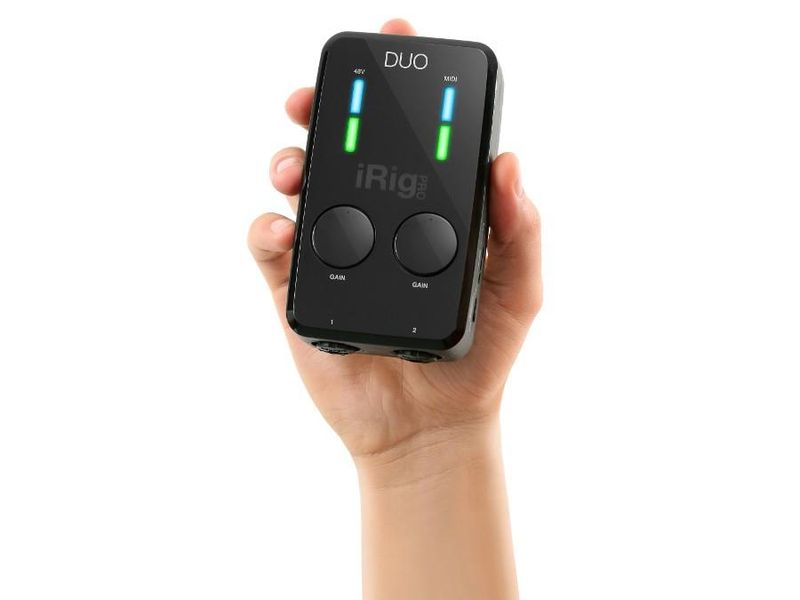

IK Multimedia iRig PRO Duo

Først og fremst gir iRig Pro DUO deg muligheten til å bevege deg utenfor det normale arbeidsområdet takket være et urolig lavt strømforbruk. Med to stk AA batterier tar trenger den ingen strøm fra telefonen eller iPad, ved bruk fra bærbar datamaskin, enten det er Mac eller PC, kan du velge om den skal bruke interne batterier eller trekke strøm fra den bærbare. Tilkopling for strømadapter er det også, om du ønsker.

På den tekniske siden har man doble XLR/TRS innganger som kan koples til gitarer, keyboard, basser og mange andre instrumenter, og selvfølgelig mikrofoner for å fange klar og ren 24-biters lyd. Phantom Power (+48V) og midi-tilkopling er det selvfølgelig også.


iRig Pro DUO Specifications
Microphone Input:

Microphone Inputs: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: approx 2 kOhms
Gain Range: 48 dB
Phantom Power: +48V ± 4V
Frequency Response:
• from 5 Hz to 21 kHz (-3dB) Gain @ min
• from 30 Hz to 21 kHz (-3dB) Gain @ max
Input Noise:
• -103 dB(A) Gain @ min
• -86 dB(A) Gain @ max

Instrument Input
Instrument Inputs: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max
Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max

Line Output

Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
Maximum Output Level: +16 dBu into 600 Ohms balanced load
Instrument Input Impedance: 1 MOhms
Frequency Response: from 10 Hz to 21 kHz (-3dB)
Output Dynamic Range: 106 dB(A)
Output Impedance: 150 Ohms balanced

Common

AD and DA Resolution: 24-bit
Sampling Rate: 44.1 kHz and 48 kHz
Power: USB bus power, battery power (2xAA), or DC power supply (9VDC, from 500mA up, positive outside - not included)
Metering: Multicolor LED
Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
Weight: 197.2g/6.96oz (batteries excluded)
Battery Life:
• Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follow: music playng, phantom power OFF.

Package includes

iRig Pro DUO universal dual channel Audio-MIDI interface
Lightning to Mini-DIN connection cable (60cm/23.62")
Micro-USB-OTG to Micro-USB connection cable (60cm/23.62")
USB to Mini-DIN connection cable (60cm/23.62")
2 x 2.5mm jack to MIDI cable (160cm/63")
2 x 1.5V AA Battery

Dimensions

Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
Weight: 197.2g/6.96oz (batteries excluded)
Lightning to Mini-DIN connection cable: 60cm/23.62"
Micro-USB-OTG to Micro-USB connection cable: 60cm/23.62"
USB to Mini-DIN connection cable: 60cm/23.62"
2.5mm jack to MIDI cable: 160cm/63"

Requirements
iOS Devices

Compatible with iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s*, iPhone 4*, iPod touch 5th generation, iPod touch 4th generation*, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini, iPad 3rd generation*, iPad 2*, iPad*. iOS 5.1 or later is required.

* 30-pin to Mini-DIN cable (sold separately) is required

Computers

Mac®: Mac OS X 10.6 or later. One free USB port.

Windows®: Support using the ASIO4ALL driver on Windows XP/Vista/7/8.

Android Devices

Compatible with Android devices that support Samsung Professional Audio technology, like the Samsung Galaxy S6, Galaxy S6 Edge, Galaxy Note 4 and Galaxy Note Edge. Samsung Galaxy S5 and Galaxy Note 3 require Android 5.

Compatible with Android devices with USB (OTG) connector running Android apps that use USB (OTG) audio input.

Compatible with any Android devices with USB (OTG) connector running Android 5.
