Informasjon

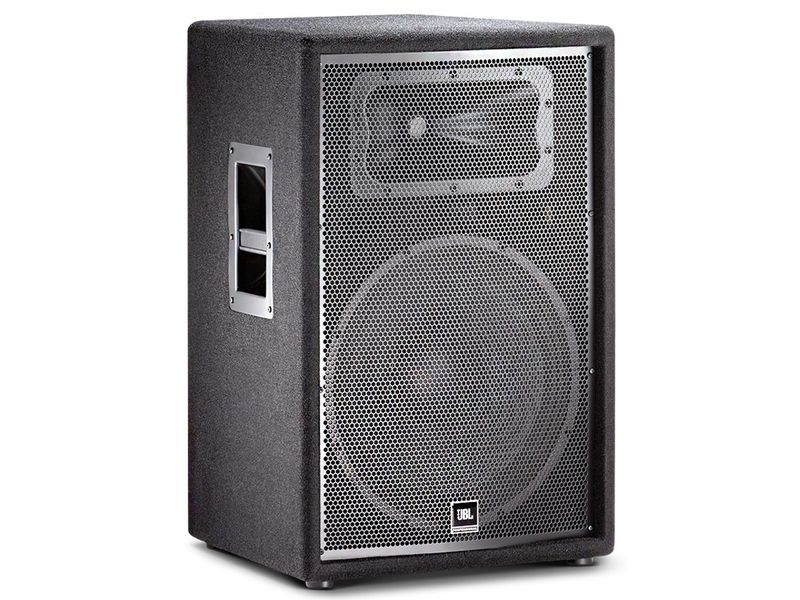

Passiv høyttaler for de fleste oppgaver.
15 tommers basselement gjør at den svelger unna det meste.
Filtkledd kasse i høy kvalitet og kraftig gitter i front gjør dette til en robust høyttaler.
- JBL 15" low frequency driver with a 2." diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling
- JBL 2414H-C 1" polymer diaphragm compression driver improves high frequency performance as well as system reliability
- The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating
- Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance
- SonicGuard protects the high frequency driver from excess power without interrupting the performance
- Non-resonant, all-steel handles are used
- Attractive 18-gauge perforated, steel grille protects components from damage
| Power Rating | 250 W / 1000W |
| Frequency Range (-10 dB) | 41 Hz - 18 kHz |
| Frequency Response (±3 dB) | 59 Hz - 13 kHz |
| Sensitivity (@1m) | 99 dB SPL (1w/1m) |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
| Maximum SPL | 129 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.2 kHz |
| Dimensions (H x W x D) |
699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in) |
| Weight | 27.4 kg (60.5 lb) |
| High Frequency Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| Low Frequency Driver | JBL M115-8A |
| Input Connectors | Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel |
Produsent
JBL
Amerikansk produsent av aktive og passive høyttalere. Trenger du lyd og mye av det, gjerne flyttbart i samme slengen, feks til scene eller utendørs bruk, så har JBL garantert noe som passer for deg.
