| Acoustics |
|
| -6 dB free field frequency response |
53 Hz … 22 kHz, ± 6 dB |
| -3 dB free field frequency response |
57 Hz … 21 kHz, ± 3 dB |
| Pass band free field frequency response |
59 Hz … 20 kHz, ± 2 dB |
Self-generated noise
(with input gain set to 100 dB for 0 dBu) |
< 20 dB(A) at 10 cm |
Sine wave output with a
THD < 0.5 % at 1 m |
90 dB SPL (>200 Hz) |
Max. SPL in full space / calc. in half space
at 3% THD at 1m |
102.8 / 108.8 dB SPL
(averaged between 100 Hz and 6 kHz) |
Bass capability: Max. SPL in half space
at 3% THD at 1m |
92.1 dB SPL
(averaged between 50 Hz and 100 Hz) |
| Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions |
104 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) |
93 dB(C) SPL (full range)
100 dB(C) SPL (with subwoofer) |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) |
88 / 93 dB(C) SPL (full range)
91 / 96 dB(C) SPL (with subwoofer) |
| Electronics |
|
Bass amplifier output power
(THD+N, 0.1%, 10%) |
90 W, 120 W |
Treble amplifier output power
(THD+N, 0.1%, 10%) |
50 W, 70 W |
| Controller design |
Digital, active |
| Crossover Frequency |
1.8 kHz |
| Crossover Slope |
48 dB/oct, 8th order with phase correction |
| Equalization - Low Mid |
0, -1.5, -3, -4.5 dB |
Equalization – via Neumann.Control
software |
8 x full parametric IIR + low / high shelf global balance |
| FIR phase correction |
Linear phase (170 Hz ... 16kHz, +/- 45°), Analog emulation |
| Latency A-D-A – linear phase, analog emulation mode |
2 ms, 0.65 ms |
| Protection circuitry |
Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter. |
| Infrasonic filter - frequency; slope |
61 Hz; 12 dB/oct. |
| Input |
XLR / 6.3 mm (¼”) Jack, analog electronically balanced
|
| Impedance |
14k Ohms |
| Input gain control (sensitivity) |
0 dB to -15 dB |
| Output level control |
94, 100, 108, 114 dB SPL |
| CMRR |
>56 dB @ 15kHz |
| Max. input level |
+24 dBu for 94 dB SPL setting |
| Digital converter: resolution, design |
24-bit DAC, ?? |
| Digital internal sampling rate |
48 kHz |
| Dynamic range D-A; woofer, tweeter |
114 dB, 117 dB |
| User adjustable delay range |
0 … 70 ms |
| Audio-video/lip sync max. frames |
1.75 (40 ms frames) or 2.1 (33 ms frames) |
| Time-of-flight max. distance |
24 m (79 ft) |
| Resolution – time/distance |
0.1 ms / 3.44 cm (1 3/8”) |
Displays and indicators:
Normal operation
Identification
Limit / clip / errors |
Neumann logo “White”
Neumann logo “Rosé”
Neumann logo “Red” |
| Mains Power Supply, voltage; frequency |
100-240V; 50/60 Hz |
Power consumption (230 V / 100 V):
Standby
Idle
Full output |
<330 / <50 mW
9 / 8 W
180 W |
| Standby |
Disabled, 90 mins (default), or user defined in software |
| Mechanics |
|
| Cabinet surface finish, color (front / back) |
Painted composite polycarbonate material, Anthracite (RAL 7021) / Black (RAL 9005) |
| Operating conditions |
+10° C to +40° C (+50° F to +104° F), <75% RH, non-condensing |
| Transport/storage conditions |
-25° C to +60° C (-13° F to 140° F),
<90% RH, non-condensing |
| Woofer |
100 mm (4") with integrated black metal grille |
| Tweeter |
25 mm (1") with integrated black metal grille |
| Mounting points |
2 x M6 threaded inserts with 70 mm spacing on back panel, depth from outside of cabinet 16 mm (5/8”). |
Product dimensions
(height x width x depth), mm (inches) |
233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8") |
| Net volume, internal / external |
3.7 liters / 7.0 liters |
| Product weight |
3.4 kg (7 lbs 8 oz) |
Packed dimensions
(height x width x depth), mm (inches) |
345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8") |
| Packed weight and cube |
4.1 kg (9 lbs 1 oz), 0.023 m3 |
| Delivery includes |

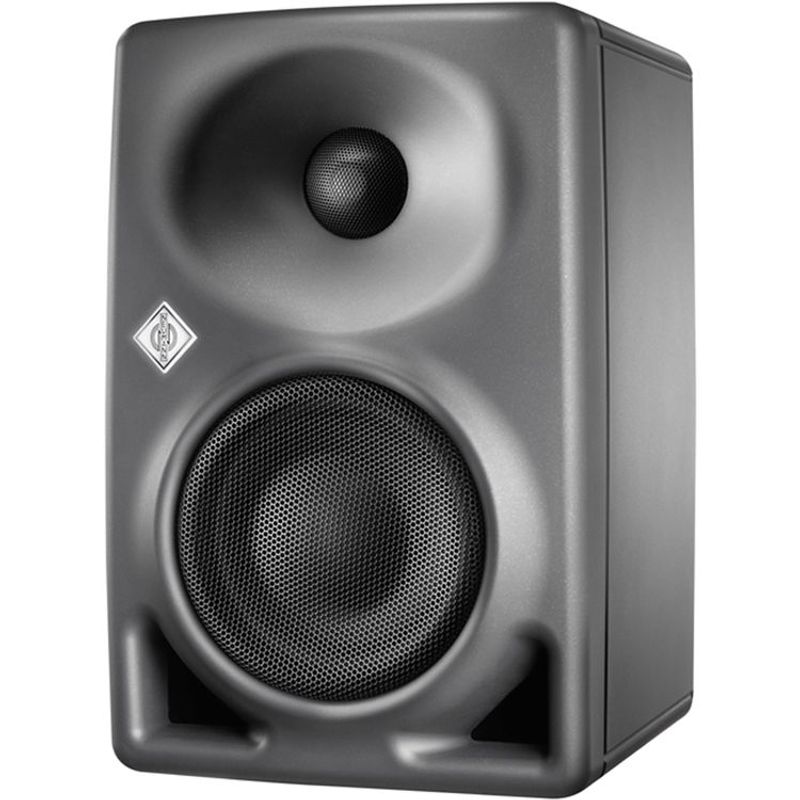

1x KH 80 DSP A
1x Mains cable
(European, UK, US, or CCC and KC)
4x Self-adhesive feet
1x Getting Started Quickly guide
1x Safety booklet
|
