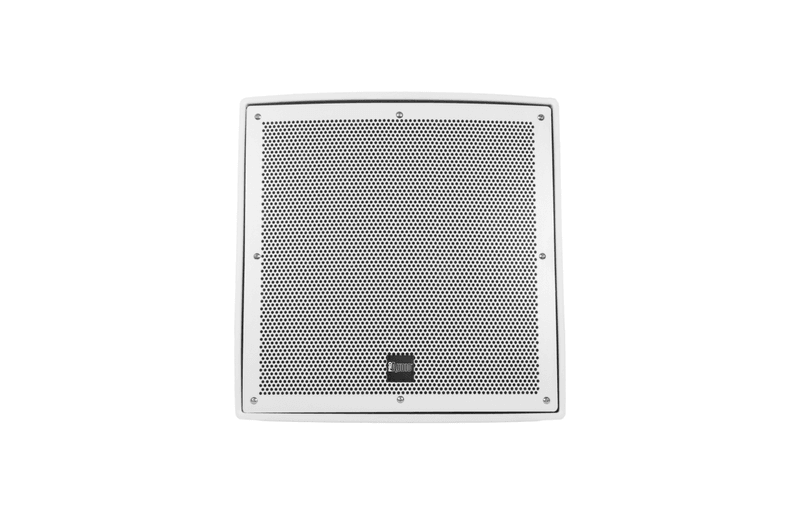

Proaudio AIR12TCOAX Passiv høyttaler

AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Features:

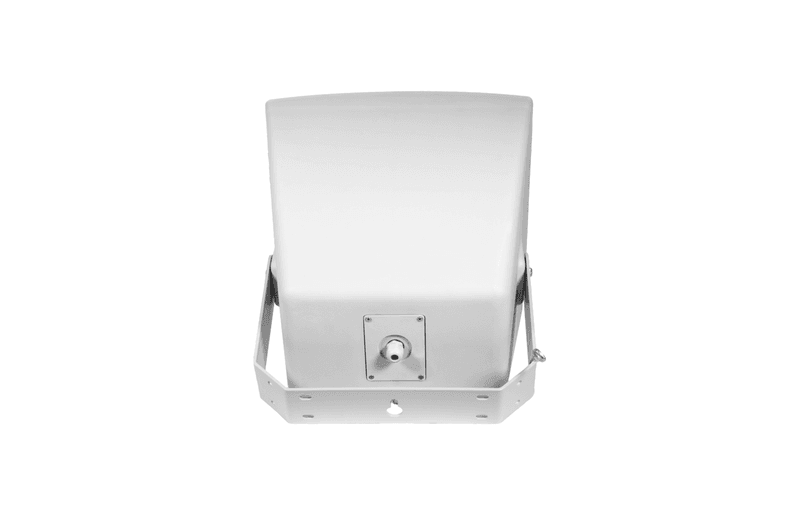

• Vertically or horizontally mounted with the brackets /supplied supports
• Tested to withstand snow, rain and salt
• Suitable for use on the boat
• The AIR12TCOAX 2-way full-range loudspeaker with IP56 waterproof protection is ideal for long distances in professional installations both indoors and outdoors.
• The coaxial transducer allows uniform coverage and high intelligibility.
• Equipped with a transformer for use in 100V systems.
• The polypropylene cabinet guarantees complete protection against ultraviolet rays.
• The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.

PHYSICAL
IP rating: 56 for outdoor events
Dimensions (WxHxD): 407x410x443mm
Weight: 18kg

LOUDSPEAKERS
System type: passive 2 way coaxial design

COMPONENTS
Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.

ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
Impedance: 8
SPL cont/peak: 122/128dB @1m (free field)
Frequency response: 55-18000Hz (±3dB)
Coverage angle HxV: 80x80°
Cross over frequency: 2200Hz
Protection: H.F. signal compression
Suggest HPF range: 120/160Hz
Recommended amplifier up to: 600W

INPUT/OUTPUT CONNECTORS
Input signal: screw terminal IN/OUT

CABINET CONSTRUCTION
Cabinet material: polypropilene
Sospension system: wall brackets (included)

FEATURES
AES/program power: 300/600W
Input 100 V: 75/150/300W
SPL max: 128dB @1m (free field)
