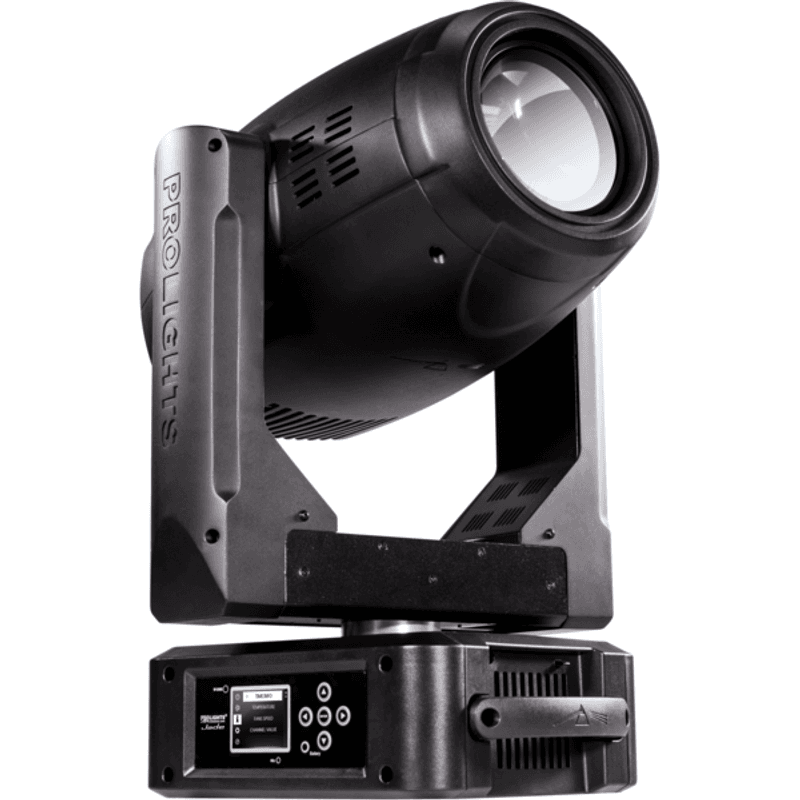

PROLIGHTS JADE Spot/Beam moving head

JADE is the new hybrid Beam, Spot and Wash fixture conceived by Prolights to begin a new era of flexibility for automated moving fixtures.

Equipped with Osram Sirius 280W HO short-arc lamp, JADE is surprisingly compact and ultra-light despite its high luminous flux, proving to be the perfect solution for rental companies. The special glass optic system has been engineered to grant a super-bright, sharp and crystal projection over the entire zoom range in both Beam mode 2°-10° and Spot mode 5,5°-23°.

JADE also emulates a Wash fixtures by combining Zoom, Frost and any of the 13 color filters on board. The remarkable versatility of this projector is the result of a wide range of effect with unlimited possibilities: 2°-23° (1:12) zoom, 14 static gobos dedicated to Beam mode, 9 rotating glass gobos dedicated to Spot mode, 8way circular and 6way linear prysm, frost filter, 13 colors.

Compact sized, bright to be used in arenas, featuring Beam, Spot and Wash, JADE is the solution for every light-show.

Lamp

• Osram Sirius HRI 280W HO
• Color temperature: 7800 K
• Luminous flux: 11500 lm
• Average life span: 2000h

Optics

• HQ glass lens optics
• Lamp featuring built-in parabolic reflector ensuring highest uniformity and precision
• Focus: electronic focusing + autofocus
• Zoom range: 2°-10° beam mode, 5.5°– 23° spot mode
• Zoom speed: Beam: 2°-10° (1.8sec), Spot: 5.5°-23°(2.1sec)
• Light output (Beam mode): 93850 lux @ 15mt, 2°
• Light output (Spot mode): 2562 lux @ 5mt, 23°
• Dimmer / shutter / strobe
• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 8 flash per second (with random strobe effect)

Color system

• Color wheel with 13 dichroic filters + open, linear-step-less selection (1,98rps)
• 3200K + 5600K color temperature and UV filters
• Bidirectional rainbow effect
• Color bounce effect for sequential colors on the wheel

Effects

• 1st Gobo wheel: 9 dichroic rotating Gobos
• 2nd Gobo wheel: 14 metallic fixed Gobos
• 126 possible overlapping gobos combinations
• "Gobo-shake" effect
• “Gobo-scroll” effect with variable speed
• Gobo change with synchronized blackout
• Easy access to gobo wheels for replacement
• 8-facet circular prism effect, bi-directional rotation with variable speed
• 6-facet linear prism effect, bi-directional rotation with variable speed
• Frost filter softening beam outlines
• Auto & SoundActive show, with editable scenes from Menu with Master/Slave function

Electronics

• Color LCD display with high resolution for simplified access to control menu, configuration and DMX addressing
• Menu language: English, French, Spanish
• 4 DMX configurations available: 14/16/22/23 channels for full flexibility and control
• 2,4GHz WDMX receiver by Wireless Solutions (optional)
• Input and output signal through 3p and 5p XLR connectors
• RDM ready to set DMX Address, Display Flip, X/Y Reverse and more settings
• RDM monitors Voltage, Current, Power Consumption Of Lamp
• Firmware Upgrade Via DMX
• Hibernation When Lost DMX For Preset Time
• Advanced diagnostic system for all PCBs, with thermal and fan rotation control
• "ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
• Remote ON/OFF lamp control by DMX
• Remote unit reset by DMX

Lamp life timer

• Cooling: filtered forced ventilation with auto-change fan speed according to temperature
• Temperature indication of base, arm, head
• Battery backup for user operation without connecting to the main
• Structure and moving body
• Aluminium structure with hi-resistance poly-carbonate cover, black color
• Ergonomic side handles for transportation
• Motion Angle: Pan = 630° (2.8 sec) - 540 (2,1 sec), Tilt = 265° (1,8 sec)
• Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,47°   Pan Fine = 0,0096° Tilt = 1,039° Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

Power supply

• Electronic ballast: 100-240V 50/60Hz universal 500W power supply
• Connections: PowerCON TRUE IN
• Power consumption: 423W
• Temperatura di esercizio: -20°C to 45°C
• Protection: IP20

Weight and dimensions

• Weight: 18 kg
• Dimensions (WxHxD): 355x619x235 mm
