Informasjon
Passer store som små scener eller som en magisk effekt på fasader og vegger.
RGB-lasere gir hele 7 (!) forskjellige farger med skarp, høylys laser med en total på 480mW.
Denne kan skyte langt!!

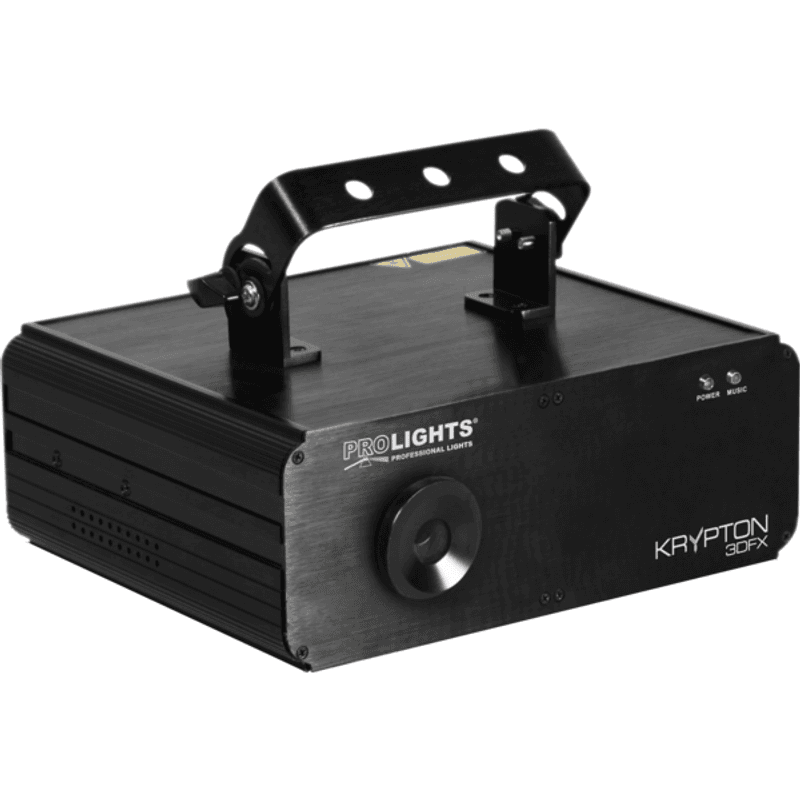

KRYPTON3DFX is a professional graphic laser projector, designed to create amazing laser shows, 3D effects, in large venues.
RGB additive colour mixing allows the generation of 7 colours, with a sharp bright output, relying on total 480mW power (100mW red+ 80mW green+ 300mW blue) projecting images, sceneries and visible 3D beams up to long distance.
KRYPTON3DFX can be controlled through ILDA-compatible softwares, DMX protocol, sound show and pre-programmed auto shows.
Laser source
- Light source: Diode laser 100mW 638nm red + 80mW 532nm green + 300mW 450nm blue
- RGB colour mixing: 7 colours (red, green, blue, yellow, cyan, magenta, white) for a wide chromatic choice
- Laser radiation: 3R class
- Scan Frequency: 20KHz
Controls
- ILDA protocol: ILDA DB25 connection on rear panel, for control through computer software for advanced laser-projection programming
- DMX protocol: 3 DMX modes, up to 19 channels, with hundreds of animations and multi-ray effects
- Sound mode: sound activation through internal microphone, with adjustable sensitivity
- Visual effects: reproduction of 3D animations, texts, logos, beams and waves
- Automatic mode: 8 built-in automatic shows and 8 audio sequences
- Master/Slave: For the control of several units linked in a chain
- Control panel and user interface through LED display (4-digits)
- Safety: compliance with EN60825-1:2007 standards, manual key-switch and input for safety remote-interlock
Structure and power supply
- Connections: XLR 3p input/output, DB25 input for connection to ILDA-compatible softwares
- Power supply: AC 100-240V, 50-60Hz
- Power consumption: 50W
- Dimensions (WxHxD): 278x290x110 mm
- Weight: 4.2 kg
Produsent
Prolights
