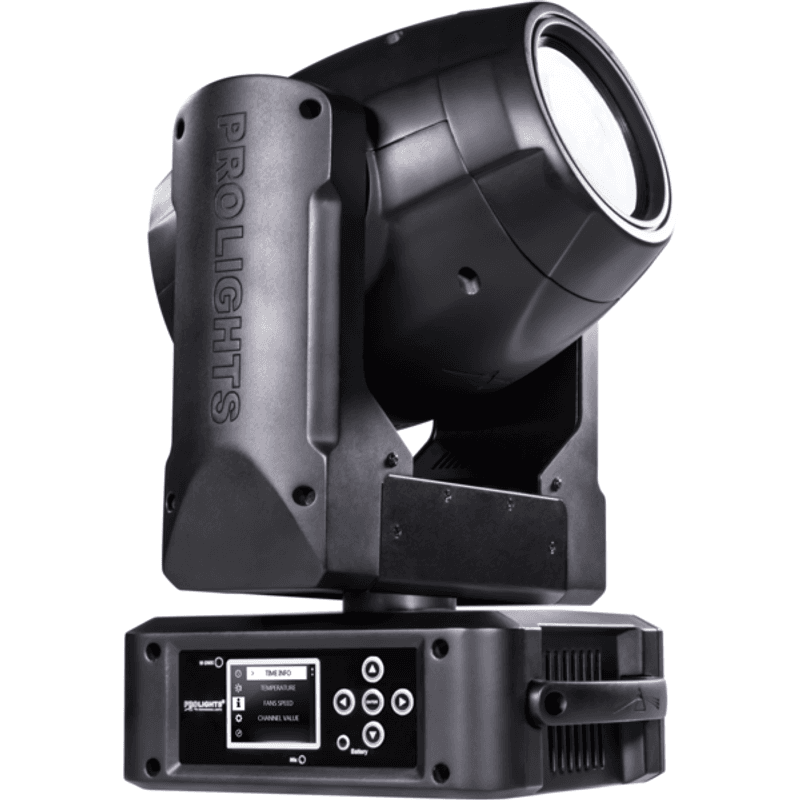

RUBY is a BEAM moving head featuring a lightweight and compact body, equipped with the new cutting-edge Osram Sirius 132W lamp which allows a light output and performances comparable to fixtures with higher nominal power. Powerful, lightweight and noiseless, this unit has been designed to generate a pure and high concentrated beam, halo free and parallel. RUBY opens doors to a new level of creativity freedom in the field of aerial lighting effects, offering 14 colors, 17 gobos, focus, rotating 8f circular and 6f linear prism, frost and shutter. Extreme speed and precision of movements is guaranteed by the ultra-lightweight chassis and by usage of special motors, allowing RUBY to be as fast as the moving mirror of scanners in its movements. SHINE series electronic design offers advanced features as colorful high-definition LCD display with multi-language Menu, battery backup, RDM, hibernation, color bounce, advanced diagnostic and color managment system. This new-concept BEAM is ideal for all Lighting Designers, who may enlarge the number of light points without increasing the budget for the investments and for the Rental Companies who may handle a compact fixture with unprecedent performance and efficiency, reducing the management costs in terms of consumption, logistics, stocking and lamp replacement (average lamp life is 6000 hours).
Lamp
- Osram Sirius HRI 132W
- Color temperature: 9200 K
- Luminous flux: 5150 lm
- Average life span: 6000h
Optics
- HQ glass lens optics
- Beam angle: 2°
- Lamp featuring built-in parabolic reflector ensuring highest uniformity and precision
- Focus: electronic focusing
- Light output: 393000 lux @ 5mt
Dimmer / shutter / strobe - 0-100% linear dimmer
- Independent shutter and fading effects with adjustable speed
- Strobe: mechanical, 8 flash per second (with random strobe effect)
Color system
- Color wheel with 14 dichroic filters + open, linear-step-less selection (1,98rps)
- 3200K + 5600K color temperature and UV filters
- Bidirectional rainbow effect
- Color bounce effect for sequential colors on the wheel
Effects
- Gobos group composed by 17 metallic gobos (1,22 rps)
- "Gobo-shake" effect
- “Gobo-scroll” effect with variable speed
- Gobo change with synchronized blackout
- Easy access to gobo wheels for replacement
- 8-facet circular prism effect, bi-directional rotation with variable speed
- 6-facet linear prism effect, bi-directional rotation with variable speed
- Frost filter softening beam outlines
- Auto & SoundActive show, with editable scenes from Menu with Master/Slave function
Electronics
- Color LCD display with high resolution for simplified access to control menu, configuration and DMX addressing
- Menu language: English, French, Spanish
- 4 DMX configurations available: 11/13/14/17 channels for full flexibility and control
- 2,4GHz WDMX receiver by Wireless Solutions (optional)
- Input and output signal through 3p and 5p XLR connectors
- RDM ready to set DMX Address, Display Flip, X/Y Reverse and more settings
- RDM monitors Voltage, Current, Power Consumption Of Lamp
- Firmware Upgrade Via DMX
- Hibernation When Lost DMX For Preset Time
- Advanced diagnostic system for all PCBs, with thermal and fan rotation control
- "ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
- Remote ON/OFF lamp control by DMX
- Remote unit reset by DMX
- Lamp life timer
- Cooling: filtered forced ventilation with auto-change fan speed according to temperature
- Temperature indication of base, arm, head
- Battery backup for user operation without connecting to the main
Structure and moving body
- Aluminium structure with hi-resistance poly-carbonate cover, black color
- Ergonomic side handles for transportation
- Motion Angle: Pan = 630° (2,9 sec) Tilt = 265° (1,3 sec)
- Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,47° Pan Fine = 0,0096° Tilt = 1,039° Tilt Fine = 0,004°
- Feedback automatic repositioning
- Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
Power supply
- Electronic ballast: 100-240V 50/60Hz universal power supply
- Connections: PowerCON IN/OUT
- Power output allowing up to 8 units to be connected on a single power line (at 230V)
- Power consumption: 216W
Weight and dimensions
- Weight: 10,5 kg
- Dimensions (WxHxD): 294x437x200 mm
Produsent
Prolights
