Sennheiser XSW-D Portable Lavalier Set

Small and Mighty

Miniaturised components with high-caliber features - Sennheiser XS Wireless Digital packs a huge amount of power and functionality into compact components. Transmitters and receivers are unobtrusive and lightweight. Their sleek design and small size make them easy to hide, store, and transport. They remove the need for cables that can often restrict movement, giving you the freedom to capture every detail with nothing to hold you back...

Each component is powered by a built-in lithium-ion battery, giving you up to five hours of continuous operation to handle even the longest of sessions. Multiple transmitters can be paired with a single receiver too. So even if you have limited inputs on your recording device, you can still transmit multiple signals across the XSW-Digital's 2.4GHz digital frequency spectrum and take advantage of the system's exceptional sound quality.

The XS Wireless Digital Portable Lavalier Set

This handy set gives you an XSW-Digital transmitter and receiver, a handy belt clip, a camera cold shoe mount, and a 3.5mm coiled cable, and a Sennheiser ME2-II Clip-On Lavalier Microphone. Both the transmitter and receiver are equipped with 3.5mm mini-jack sockets. The transmitter is the perfect companion for connecting the included ME2-II lavalier microphone, whilst the receiver can be mounted in the cold shoe mount and connected to your DSLR or other device using the 3.5mm coiled cable. The belt clip also allows you to attach either the transmitter or receiver to your clothing for unobtrusive handsfree operation. No more wires getting in your way - this wireless 'cable replacement' puts you in control of your performance and projects.

The Freedom of Simplicity

Wireless has never been easier. The Sennheiser XS Wireless Digital series gives you what you want without the hassle of extensive configuration processes and confusing controls. Every XS Wireless Digital system is intelligent and intuitive. Pre-paired plug-sets let you get setup quickly straight out of the box, whilst channel allocation and interference management are handled automatically. All you have to do is plug your transmitter and receiver in, make sure they're paired, and you're good to go. No complicated controls, no complex processes, and no crowded interfaces. A single button and status LED on each component give you all the control you need.

Superior System Flexibility

Adaptability is an important aspect of any wireless system. With Sennheiser XS Wireless Digital, it's a priority. Giving you the ability to operate up to five XS Wireless Digital systems simultaneously, Sennheiser have created a wireless solution that lets you perform exactly the way you want to. The series consists of ten different kits designed for a wide variety of situations, as well as six single devices for creating a system that's built around you. A diverse range of interfaces, including 3-pin XLR, 3.5mm mini-jack, and 1/4'' jack, mean you can use your Sennheiser XSW Digital system with a huge selection of microphones, instruments, and equipment. Whether you're plugging your favourite handheld microphone into the XLR transmitter, a hidden lavalier mic into a 3.5mm transmitter, or the 1/4'' jack transmitter into your guitar. XSW-Digital lets you adapt your system to suit your needs. Combined with a vast array of accessories, the XS Wireless Digital series makes sure you can be ready for anything.

This Portable Lavalier Set provides you with a transmitter and receiver, each with a 3.5mm (1/8'') mini-jack socket (various transmitters and receivers with other connectors (XLR, 3.5mm, and 1/4'') are not included, but are available separately as individual components or as part of other sets). The transmitter can be connected to the included ME2-II clip-on lavalier microphone. The transmitter and receiver can also be attached to you using the included belt clip. The included cold shoe mount can be attached to the top of your camera, whilst the 3.5mm coiled cable runs from your receiver and into your DSLR's microphone input. The Sennheiser XS Wireless Digital system removes the need for restrictive cables between you, your sound source, and your recording device.

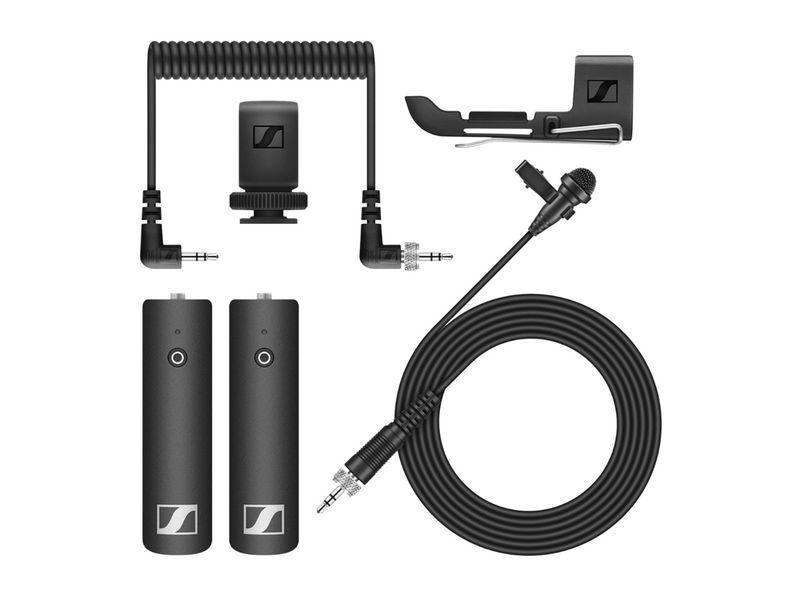

In the Box

• XS Wireless Digital 3.5mm (1/8'') Transmitter

• XS Wireless Digital 3.5mm (1/8'') Receiver

• Sennheiser ME2-II Clip-On Lavalier Microphone

• XS Wireless Digital Belt Clip

• XS Wireless Digital Cold Shoe Mount

• 3.5mm (1/8'') Coiled Cable

• USB-A to USB-C Charging Cable

Features

• Plug and play portable wireless system that operates in the digital 2.4GHz frequency spectrum

• Lightweight and compact plug-on transmitter and receiver, both with 3.5mm (1/8'') mini-jack connections

• ME2-II clip-on lavalier microphone can be connected to your transmitter for unobtrusive vocal and speech recording

• A cold shoe mount and 3.5mm coiled cable allow you to mount and connect your receiver to your DSLR

• Also includes a handy belt clip for attaching the transmitter to clothing for unobtrusive hands-free operation

• Incredibly easy to use - a single button and LED status indicator handle power and linking

• Plug sets come pre-paired, so you can get setup and performing straight out of the box

• Up to five XS Wireless Digital systems can be operated simultaneously

• Channel allocation and interference management are handled automatically

• Operating range of up to 75m (250ft) in optimal conditions

• Multiple transmitters can be paired with a single receiver

• Each component is lightweight and compact, making them easy to keep hidden when in use

• Powered by in-built USB-rechargeable lithium-ion batteries providing up to 5 hours of continuous runtime

• Perfect for rehearsals, jamming, small gigs, videographers, vloggers, mobile journalists and more

Specifications

• Operating Frequency Band: 2,400mHz - 2,483.5MHz (2.4GHz band)

• Operating Range: 75m / 250ft (in optimal conditions)

• Codec: aptX® Live

• Audio Frequency Response: 80Hz - 18kHz

• Audio Output: Max. 12dBu

• Signal-to-Noise Ratio: ≥106dB

• THD: <0.1-percent

• Audio Latency: <4ms

• Transmission Power: Max. 10mW (EIRP)

• Modulation: GFSK with TDMA

• Cell Type: Li-Ion

• Nominal Voltage: 3.7V

• Cell Capacity: 850mAh

• Operating Time: Up to 5-hours

• USB-C Input Voltage: Typ. 5.0V

• Charging Temperature: 0°C to 60°C / 32°F to 140°F

• Charging Time: Typ. 3-hours

• Dimensions:

  • Mini Jack TX: Approx. 86mm x 24mm x 28mm

  • Mini Jack RX: Approx. 86mm x 24mm x 28mm

• Operating Temperature: -10°C to +55°C / 14°F to 131°F

• Relative Humidity: 95-percent (non-condensing)
