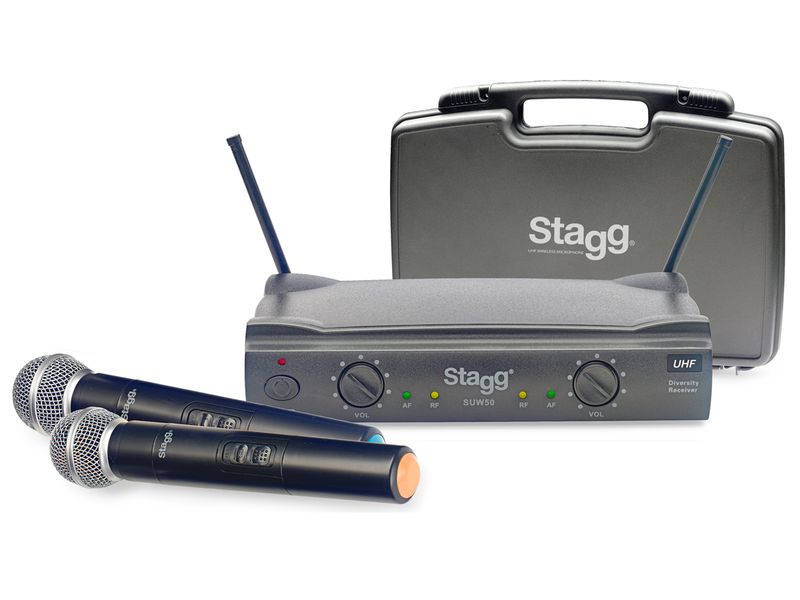

Stagg SUW 50 MM FH EU Dobbelt Håndholdt Trådløssystem

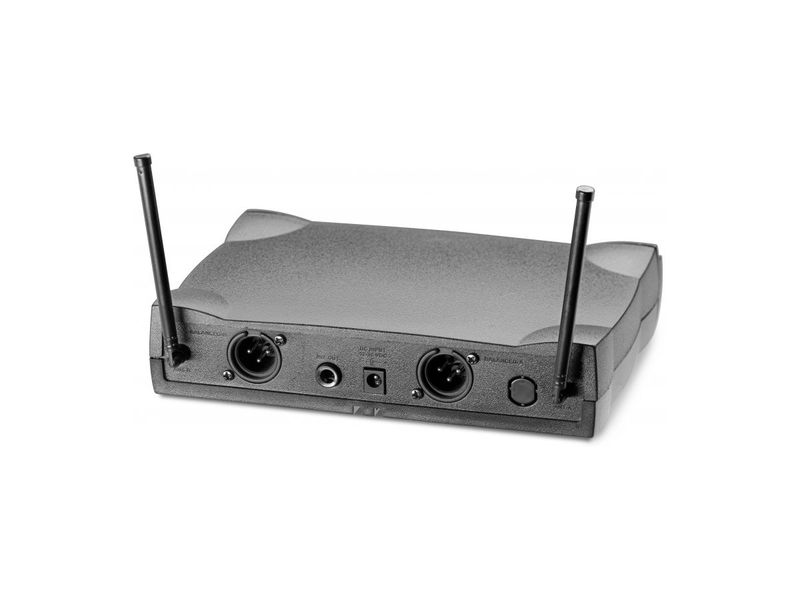

RECEIVER

• Frequency Range 500-980 MHz
• Audio Output Unbalanced Max output 5 dBu
• Power Supply 12-18 V DC
• Power Consumption 150 mA (at 13.5 V DC)
• Receiver Sensitivity -90 dBm

HANDHELD MICROPHONE AND BELT-PACK TRANSMITTER

• Frequency Range 500-980 MHz
• RF Emitting Power 10 mW
• Battery Type 2 x AA battery l.5 V
• Frequency Response 50 – 20.000 Hz
• Input Sensitivity 2.1 mV / Pa
• Power Consumption 100 mA at 3 V

SYSTEM

• T.H.D. (Overall) 0.1%
• Signal to Noise 96 dB (A)
• RF Frequency Range 500- 980 MHz
• Bandwidth 300 kHz
• Dynamic Range 90 dB (A)
• Audio Sampling 24 bit / 48 kHz
• Oscillation Mode PLL synthesized
• Audio Delay 3 ms
• Audio Encoder PT Live
• Frequency Response 20-20.000 Hz
• Working Distance 60 m (200 feet)
