Informasjon

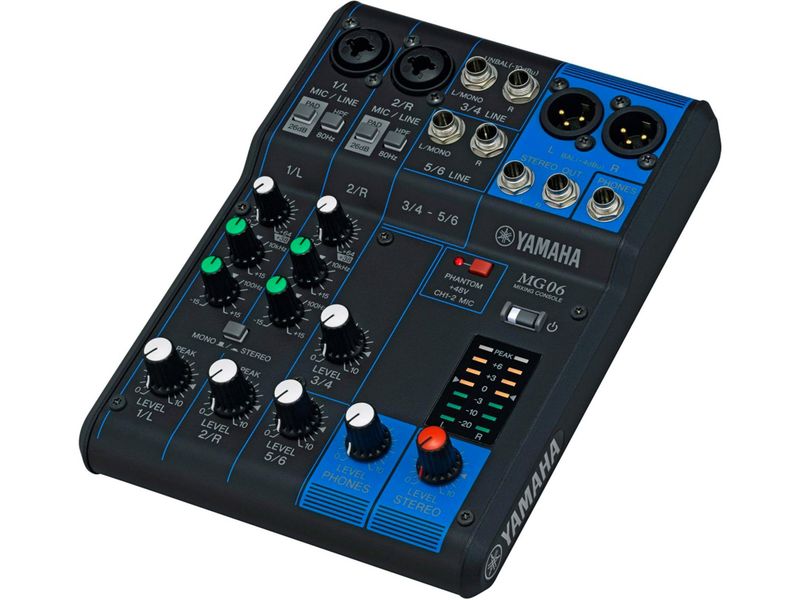

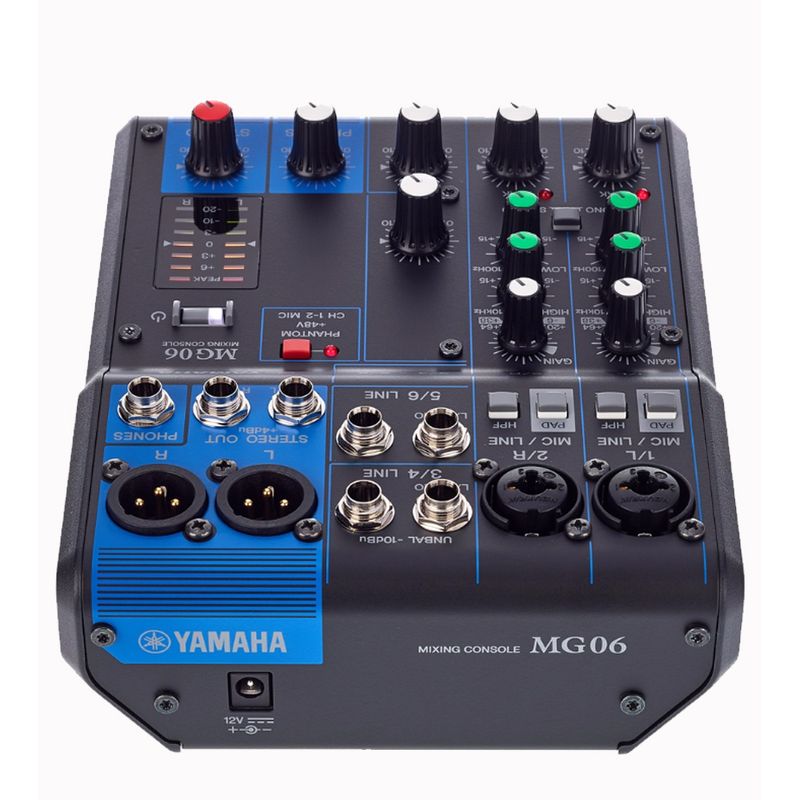

6-kanals mikser. Mikseren har to stykk XLR-inngang og 4 jack-innganger (2 mono + 2 stereo). Balanserte utganger, fantommating og metalchassis er også på plass.
• 6-Channel Mixing Console
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• XLR balanced outputs
• PAD switch on mono inputs
• +48V phantom power
• Metal chassis
• Dimensions(W×H×D): 149 mm x 62 mm x 202 mm
• Net Weight: 0.9 kg
Produsent
Yamaha
Utvidet info
I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
PHONES 1
Bus Stereo: 1
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -88 dB
Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption 12 W
Dimensions W 149 mm (5.9")
H 62 mm (2.4")
D 202 mm (7.9")
Net weight 0.9 kg (1.98 lbs.)
Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others Operating Temperature: 0 to +40°C
